Freescale MC9S12NE64 development with Imagecraft ICC12 and NoICE

This web page documents the development of a MC9S12NE64 based ethernet to RS-485 & DMX & Colorkinetics board ("Leoplayer"), with Secure Digital file playback.
Board is 2-layer 3.5" x 2"

Project timeframe: November 2004 - Jan 2005
Client: Leo Villareal
Webpage revisions:
Initial incomplete draft: March 11 2005
Some additions, and probably the last revisions forever: June 24 2005
IMPORTANT UPDATE: Feb 20 2007: subtle, important bug in Freescale code fixed; see here
Minor update May 19 2007: replaced pictures to show current design revision, minor text changes, fix links

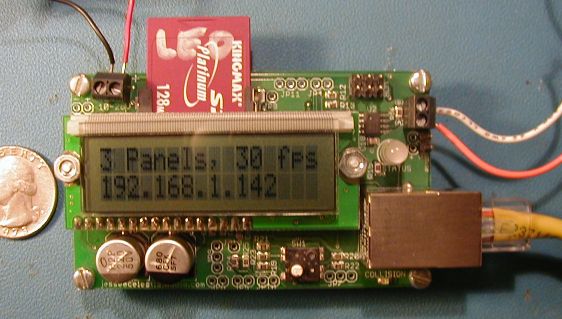

Top View:
(top view)

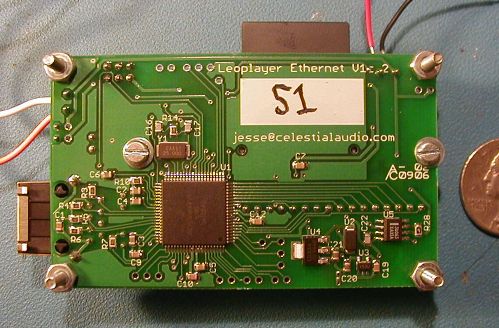

Bottom View:
(bottom view)

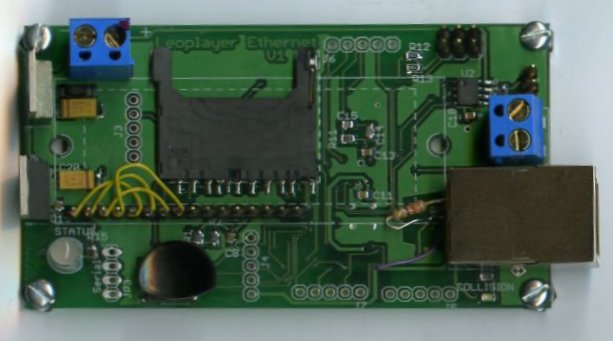

Top view of earlier version without LCD

This new (circa Nov. 2004) HCS12 based chip has a lot of potential and is making a splash.  For $13 qty 25 at digikey one can create a single-chip ethernet-enabled anything.  This project for a longtime client allows streaming of data to a 16x16, 1' square grid of LEDs (see it here) from anything that can generate a UDP packet - in particular his custom Director-based video synthesis system.  One of these boards (called a "leoplayer") drives up to three panels at 625K baud over RS-485 using a simple protocol.  In addition, the leoplayer can play LED pattern data files off a standard FAT16 SD media card to its panels and/or broadcast via ethernet to other leoplayer(s).  DMX output was recently added as well, making it simple to control standard DMX lighting via Ethernet or playback patterns stored on the SD.  The colorkinetics UDP packet format was also added, so this can play files on the SD to colorkinetics' ethernet-enabled gear.

In an effort to cut initial outlay for development tools, Metrowerks' $1000 (and up and up) C compiler / dev environment for this chip was not used.  For convenient out-of-the-box, up-and-running development Freescale provides a port of Viola Systems' "OpenTCP" stack to the Metrowerks environment, so it was clear very early on that this new chip was 'for real' and running useful code.


My client wanted an ethernet version of an earlier leoplayer design that provided file playback from Smartmedia but had no connectivity to a computer nor any means to synchronize playback of multiple leoplayers.  In addition, Smartmedia is an aging format clearly heading for the dustbin of history.  The older design is based on an 18F452 PIC with relatively limited performance and a horrendously buggy C compiler (CCS PCH).  Time to move forward.

Essential features:
After looking into various microcontroller + MAC/PHY or microcontroller w/MAC + PHY two-chip solutions, I came across the NE64.  Unfortunately it was brand spanking new.  Orders had a 6 weeks lead time, samples not available, development boards not available.  However, based on schematics in application notes, a well-written datasheet, the availability of the OpenTCP port and sample application, demo (time but not capability limited) versions of Imagecraft's ICC12 compiler & the NoICE debugger, and finally success getting samples after several phone calls to Freescale, all the pieces came together to try to do it a much cheaper and more flexible way.

A big motivation for the ICC12 / NoICE route is all the targets they support.  Instead of dropping $1K (or much more) and learning new tools and porting code every time a design calls for a new chip, for $300 new targets of Imagecraft's C compiler and NoICE can be purchased so the same development environment and existing proven C code can be used.

Phase 1.  Hardware design.

First you gotta have hardware.  Or at least be waiting for a board design to come back from the pcb proto place.  Since the choice of development environment didn't impact the hardware, and no evaluation board existed in 2004, the hardware design definitely came first.

The March 2005 issue of Circuit Cellar is a gold mine for this design - if it had arrived in November 2004.  Regardless, it has an excellent write-up of the same quirks and niggles I ran across.  The article is "Single-IC 10/100 Ethernet Solution" by Fred Eady, go buy it before starting a design with this chip.  In addition, the article on FAT16 for SD/MMC would have been fabulous to have, but's FAT12/FAT16 SD library had already been purchased and integrated.  More on this in phase 4 below.

Follow application note AN2759.  Read it and re-read it.  Page 6 is the schematic, showing the 12.4K 1% for Rbias, which is not documented anywhere else.  Look over the chip data sheet as well.  Note split grounds in the board layout on page 17.  I always follow things like this, as far as I'm concerned if Freescale (or any other large company) can be bothered to write it up with diagrams and screen captures it must be important.  Besides, 100 megabit ethernet is a lot of fast-moving signals, and taking shortcuts is inviting disaster in the works-sometimes, can't-pin-down-the-problem type of nightmares.  Network problems created by software bugs and general configuration mistakes are difficult enough to deal with, it would be really bad if the hardware itself were flaky as well.  I followed the guidance in this app note, checked my board layout carefully, and it worked fine.

Major items of note in this design:
0.1uF decoupling caps were added to all those power pins that don't have .22uF as shown in the schematic.
Status LEDs were done by the ethernet hardware, not software.  The OpenTCP port can be compiled either way.
Ethernet jack with integrated LEDs and magnetics (mouser 673-J1012F01C, it is Pulse J1012F01C)
SD socket (digikey 478-2018-1-ND)
LCD (mouser 696-LCM-S01602DTRM, it is Lumex LCM-S01602DTR/M.  Digikey carries it now as well.)
Mini-joystick (digikey 401-1130-1-ND and 401-1265-ND)
RS-485 transceiver (maxim MAX3088ECSA, but Maxim had multi-week lead times on these, so it now uses a generic 75176)
All unused pins went to .1" headers or at least holes for wires to future one-off add-ons

Watch out for:

Phase 2.  Software for Ethernet connectivity

Somewhat concurrently with the board design, and full-time while waiting for the pcbs, the software was developed.

OpenTCP and Freescale's port of it and demo application were done fairly well.  I found the structure straightforward to follow and comments mostly correct and complete.  When evaluating it while deciding on which chip/platform to use for this project it seemed pretty decent, and fortunately that was the case when it came time to actually use it.

The first step - porting it all to Imagecraft's ICC12 compiler.  A time-but-not-codesize limited demo was available, so if the port turned into a disaster, I could cut my losses and drop the bucks for Metrowerks.  I was surprised and pleased with how easy it was.  I like this compiler!  I just wish the (simple) IDE supported the mouse wheel, of all minor things that can become major annoyances...

Please note: this port was done with the Freescale OpenTCP port released September 1 2004, not version 1.0 released Feb 22 2005.  As such some of the items below may no longer be relevant and other things may need to be done.

While the ported code can't be released (for free anyway, see bottom of page), here is what you need to know to do the port and configure the project for ICC12.  I'm about to save you days of work and considerable hair-pulling so listen up.
        #pragma nonpaged_function RealTimeInterrupt
        #pragma interrupt_handler RealTimeInterrupt

#define RAM_START    0x2000
#pragma abs_address: RAM_START
  tREG16 emacFIFOa[EMAC_RX_SZ/2] = {0};    /**< Emac RX buffer A definition */
  tREG16 emacFIFOb[EMAC_RX_SZ/2] = {0};    /**< Emac RX buffer B definition */
  tREG16 emacFIFOtx[EMAC_TX_SZ/2] = {0};   /**< Emac TX buffer definition */
#pragma end_abs_address
void _jsl_start(void)
    asm("movb #$20, $10");    // INITRM= 0x20
    asm("lbra __start");
#pragma paged_function EtherInit MIIwrite MIIread EtherType EtherIoctl EtherGetPhysAddr EtherSend
#pragma paged_function ProcessPacket EtherOpen EtherClose EmacDisable EmacEnable EmacControl EtherAbortTx
#pragma paged_function EtherPause EtherOtherTx
// next one needs to be #pragma'd in ne64api.c as well (line 94)
#pragma paged_function EtherStartFrameTransmission

One gotcha with using #pragma paged_function in a .h file is that if a .c file that calls one of these functions doesn't #include the .h, the linker can't find the function, and you pull your hair out wondering why EtherInit() can't be found when it is clearly being compiled.
Compiler tab: Output format is S19 with ASM/Source level debug
Target tab:
    Custom device
    Program memory: 0x4000.0x7FFF:0xC000.0xFEFF
    Data memory: 0x2C00 (note this depends on size of ethernet buffers, chosen in ne64config.h as BUFMAP.  0x2C00 is for 1K buffers)
    Stack pointer: 0x4000
    In Expanded Memory:
       Enable is Checked, and Addr is 0xF0000.0xF7FFF
       Paged functions default is UNchecked (for my usage described above)
    S2 Record type: Linear is selected, Map vector page checked
    Advanced: in Other Options have "-bidata:0xFE00"  (to put some sort of initializing data there, I forget why I had to do this)

Things to watch out for:
#ifdef    DEBUG_STACK
    g_stackcheck= (uInt16*)((&_bss_end) + 16);
    *g_stackcheck= 0xDEAD;

    // wipe stack area to something so we can see in debugger how much has
    //    been used.
        uInt8 *currsp;
        uInt8 *ptr;
        uInt8 val;

        asm("PSHY");    // push Y onto stack
        asm("TSY");        // stack pointer -> Y
        asm("STY %currsp");    // Y -> currsp
        asm("PULY");    // pop Y offa stack

        val= 0;
        ptr= (uInt8*)(&g_stackcheck[1]);
        for (; ptr < currsp; )
            *ptr++= val;

        last_margin= 0xFFFF;
So what is going on here is I use the _bss_end compiler-generated variable to find the end of RAM, mark it with 0xDEAD, and then with a bit of assembler get the stack pointer, and fill from one word past 0xDEAD to the stack pointer with 00, 01, ... etc.  Periodically in my main() loop I scan this area and make sure 0xDEAD is still there and count how many 00, 01, ... there are.  Thus, as the system runs I get a debugging printf whenever the stack has reached a "new low".  Turns out it was all fine, I had a considerable margin left.
UINT16 NE64Receive (void *PktBuffer, UINT16 len, UINT16 flags)
  MBUF mp;        = (UINT8 *)PktBuffer;
    mp.working_ptr =;
    mp.len         = len;
    mp.status      = (MBUF_NOTEMPTY | flags);

    if (mENQUEUE (&mp) == 0)    // if queue successful, ...
        // then block interrupts.
        if (mp.status & IEVENT_RXACIF_MASK)
            IMASK_RXACIE = 0;   // Block IRQs on buffer A
            IMASK_RXBCIE = 0;   // Block IRQs on buffer B

    return 0;

Phase 3.  NoICE and pulling it all together

Noice works well; the only serious thing missing is a callback stack.  But the stack is compiler dependent, and so code would have to be added for each compiler out there, so I understand why it isn't done.  But it remains a significant omission.

In the Options -> Target Communications, set the following:

Interface & port: whatever you are using (see below for my setup)
Target Chip/Environment:  MC9S12NE64 Flash  (if you don't have this, contact the author for an updated devices file).
Use PPAGE at 0030: checked
Use 24-bit Hardware...: checked
Use Flash/EEPROM Burner: checked

Bus frequency: 25Mhz

Loading the file to burn:
File -> Load
Choose (projectname).dbg, set Files of Type: to Imagecraft DBG files
Have S2 records have linear addresses be Checked

For the programmer, I bought's BDM Multilink, this is the parallel port version, for $200.  It works pretty well, but I sometimes have problems doing resets (they sometimes take more than 30seconds sometimes for unknown reasons) and reading the chip correctly, even with the parallel port patch for XP (see their website).  I recently got the USB version for $99, and to my horror discovered that it is very slow to program the chip - 64K takes (no joke) several minutes, vs. 30 seconds or so for the parallel port version.  This makes it nearly useless for normal development where code is being programmed and tested rapidly.  All I can think is that it has been crippled so you have to buy the $200 or $500 models, although it could be something up with NoICE.  There is no mention of speed (or lack thereof) in the blurb on pemicro's website for this unit.  Additionally, pemicro's devices come with no software - just to burn a chip with a hex file you have to buy more.  (NoICE does the programming so it can be avoided).  So for now I'm taking a rather dim view of pemicro...

Phase 4.  Software for SD

The library from was pretty good but not perfect; I had to tweak things some things and pretty much rewrote the file reading to get something like a 40X speedup.  However it was quite readable and worked fine and is reasonably compact.  It doesn't support long file names, however, which is a real drag, nor FAT32.  (This was the version in 2004, it has undoubtedly been improved).

Note that in the very same issue of Circuit Cellar where the NE64 is discussed, a FAT library for SD is discussed.  This would be an excellent (and free) alternative.

Phase 5.  Test / Utility software for Windows

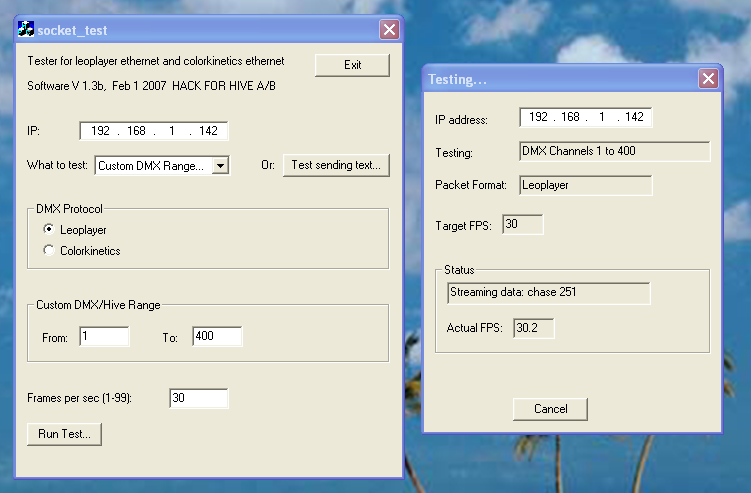

An important part of developing anything computer controlled (particularly networked) is to have a simple test application to help troubleshoot.  Here is a screenshot of that app, which generates an all-on 10%, all-on 100%, then chase over a specified range for panels, dmx, colorkinetics, and the Hive project.  Written in VC++, it is very handy to have to quickly tweak to create custom test patterns to exercise hardware during development and to check "corner cases" that might not come up often in the field.

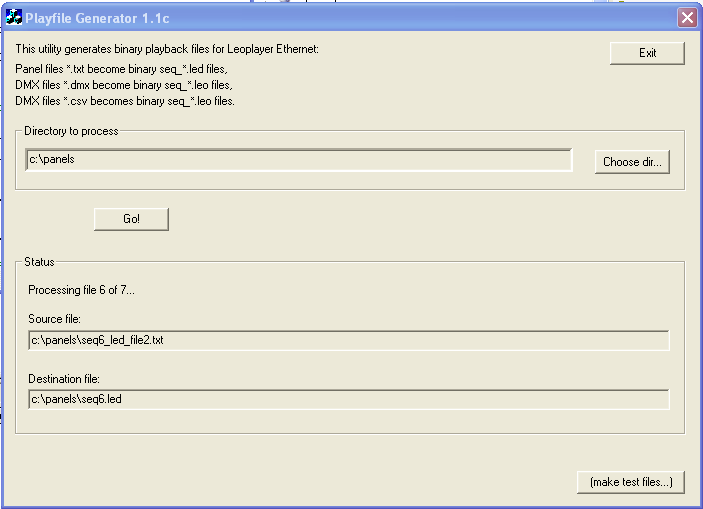

Another essential application is a utility (screenshot) to transform sequence files from ascii text to binary for efficient SD storage and fast playback.  The source DMX data files are in some kind of standardized human-readable format, and the source panel files are a simple ascii format invented for this project.  This app reads them line by line, verifies that there are the correct number of channels in each frame, and outputs the binary file.  Shows progress indication, can pick a directory to process all files in a batch, etc.

Remaining Problems

Activity LED very dim.  It looks like the NE64 can't sink much current with this pin.  I don't get it.
Update: found errata on Freescale's website (see link below), turns out this is a known problem.

Non-working with Netgear auto-crossover ethernet switches.  This happens with some D-link as well; it seems to be related to whatever chip is running the show inside them.  Curiously Linksys (at least the SD205) with auto-crossover works fine.  I really don't get it.  If anyone has knowledge of what is going on (even without a workaround) pls. let me know.  For now I just have my client buy SD205 boxes.

Schematics?  Board layouts?   Gerbers?   BOM?   Software downloads?  ...

Fortunately this project was a paying gig for a client.  Unfortunately this means the IP is not available for free give-away.  This design (or probably more usefully a customized variation of it) could be licensed to interested parties depending on all the details to be determined.  If your budget can accomodate a low-thousands range, feel free to contact me.  Schematics and board layout are in Eagle.
